15M Single Photoelectric Beam Sensor (Embedded Rain-Breaking Design)

Model : PH-15FA
Product Description:

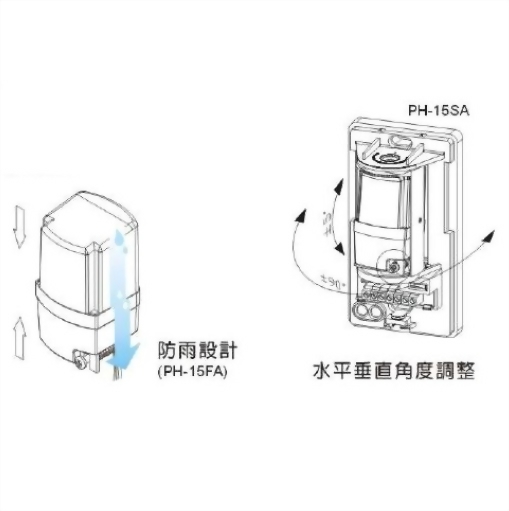

Housing design with excellent rain-breaking function especially suitable for outdoor driveway control.
Angle adjustment with ±15 degree range horizontally and ±5 degree vertically.
High efficiency aspheric lens used.
3-steps LED indicator for easier beam focus alignment.
IP Rate:IP 54.
CE Certificate.
FCC Certificate.
下載連結:
Description

Features:

  1. Housing design with excellent rain-breaking function especially suitable for outdoor driveway control.
  2. Angle adjustment with ±15 degree range horizontally and ±5 degree vertically.
  3. High efficiency aspheric lens used.
  4. 3-steps LED indicator for easier beam focus alignment.
  5. IP Rate:IP 54.
  6. CE Certificate.
  7. FCC Certificate.

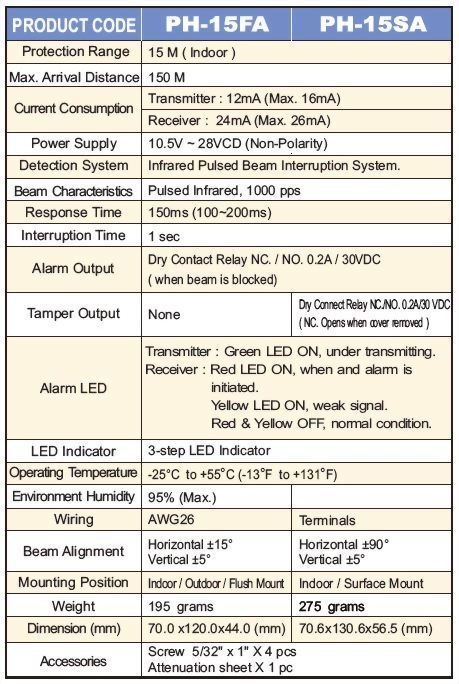

Specifications
