75M / 150M / 250M Quad Photoelectric Beam Sensor- 4 Channel

Model : 4PH-75BQE/4PH-150BQE/4PH-250BQE
Product Description:
75 m / 150 m / 250 m protection range for outdoor use. 150m / 300m / 500m for Indoor Use.
4 channel selectable beam frequencies.
Double Modulation of the synchronized pulse beam.
A.G.C. ( Automatic Gain Control ) circuit.
Protection against Frost and Snow;Cut off visible rays effectively.
High Quality Aspherical Lens.
Adjustable beam interruption period. (50 msec~700 msec)
Protection against Rain, Insects, and Dust.
Heating Unit (HT-200) as an optional part for extremely cold area.
IP Rate:IP 55
CE Certificate.
FCC Certificate.
Description


Model:75M / 150M / 250M Quad Photoelectric Beam Sensor- 4 Channel
P/N:4PH-75BQE / 4PH-150BQE / 4PH-250BQE

Features:

  1. 75 m / 150 m / 250 m protection range for outdoor use. 150m / 300m / 500m for Indoor Use.
  2. 4 channel selectable beam frequencies.
  3. Double Modulation of the synchronized pulse beam.
  4. A.G.C. ( Automatic Gain Control ) circuit.
  5. Protection against Frost and Snow;Cut off visible rays effectively.
  6. High Quality Aspherical Lens.
  7. Adjustable beam interruption period. (50 msec~700 msec)
  8. Protection against Rain, Insects, and Dust.
  9. Heating Unit (HT-200) as an optional part for extremely cold area.
  10. IP Rate:IP 55
  11. CE Certificate.
  12. FCC Certificate.

For more spec info, please visit Download Zone:
Brochure:4PH-75BQE / 4PH-150BQE / 4PH-250BQE
Manual Instruction:4PH-75BQE / 4PH-150BQE / 4PH-250BQE
Optionals:HT-200 ( Heating Unit ) RF-217 ( Alignment Device )

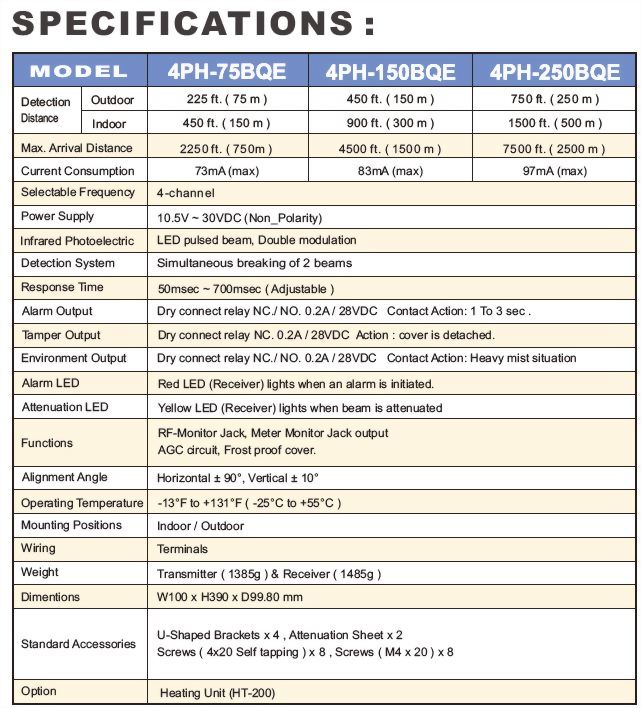

Specifications

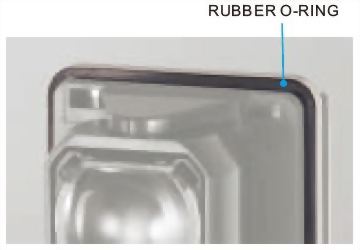

4PH-75_150_250BQE_Feature.jpg4PH-75_150_250BQE_Structure.jpg4PH-75_150_250BQE_Specification.jpg
